Reading a Topographic Map

When to use this

Before any hike in unfamiliar terrain and at every route decision point on trail.

• Planning a hike to understand elevation gain before you start
• Identifying where a trail gets steep, exposed, or cliff-prone
• Locating water sources, saddles, and ridgelines from the map

See it done

Enlarge

What you need

• A 1:24,000 scale USGS topo map of your area (or downloaded via Gaia GPS or CalTopo offline)
• A pencil for marking your route

Step by step

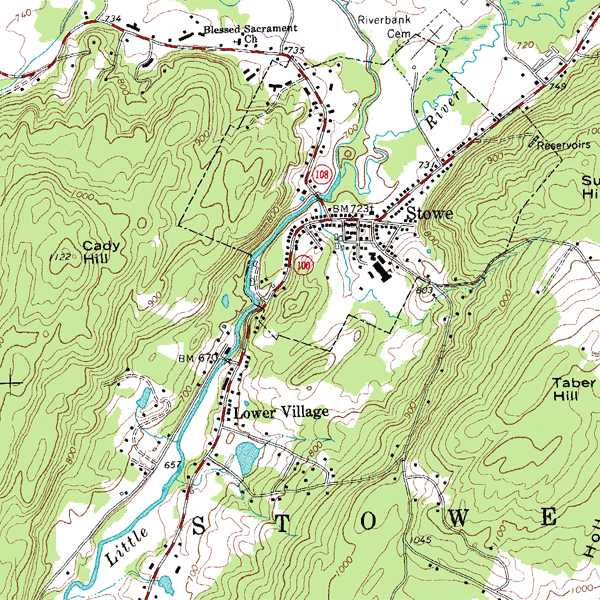

1. 1.Find the contour interval in the map legend — often 40 or 80 feet. Every line represents one interval of elevation change.
2. 2.Closely spaced lines = steep terrain. Widely spaced lines = gentle slope. Vertical cliff = lines that merge.
3. 3.V-shapes pointing uphill (up-valley) indicate a ridge. V-shapes pointing downhill indicate a drainage or creek valley.
4. 4.Index contours are the darker, labeled lines. Read the numbers to understand absolute elevation.
5. 5.Identify key features: a summit is a closed loop (usually labeled). A saddle is an hourglass shape between two summits. A cliff is where lines nearly touch.
6. 6.Trace your planned route with a finger and "read" the elevation profile — where will you gain, lose, and traverse?

Pro tips

• Contour lines never cross — if they appear to, one is a cliff overhanging the other, which is shown by hachure marks.
• For distance estimation: on a 1:24,000 map, one inch = 2,000 feet (roughly 0.4 miles).
• Download Gaia GPS with offline maps before the trip. It overlays your GPS position on the topo in real time.

Common mistakes

• Confusing ridge and valley V-shapes. Ridges V toward higher elevation; valleys V toward lower.
• Ignoring the contour interval. An 80-ft interval map looks gentler than a 40-ft map of the same terrain.
